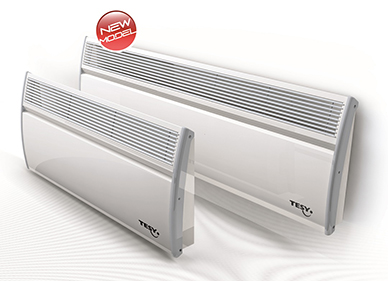

Panel Heater Range



CN02 Series

The EES panel heater range is a low cost, easy to fit and low maintenance solution.

They are designed to improve the circulation of warm air in the room through high velocity heat distribution.

The special X-Type heating element of the device prevents room air from drying and produces a balanced control of heat.
Heater Control Options

These heaters come with 2 different control options.

The Standard model has a factory fitted power on/off switch and an adjustable thermostat, ideal for buy-to-lets, apartments, outbuildings, and holiday homes.

The NC (No Control) range of heaters requires external 2 or 3 stage thermostats. This is especially useful when installed in multi-occupancy dwelling, for example, student accommodation or hotels. This provides the flexibility to control them locally, centrally or even remotely. Click here for eControl options

The special X-Type heating element of the device prevents room air from drying and produces a balanced control of heat.










Control Panel (Standard Option)
Integrated power switch and adjustable thermostat provides a simple 'plug and play' solution that respond to small changes in room temperature.
'Mini' BEMs (NC)
No built in controls, for use with local, central or remote managed thermostats. Essential where a BEMs solution is specified.
Safety
Overheat - thermal cut out Frost protection (Standard model only)
Silent Operation
No internal fans
Safety Class IP24
Splashproof - suitable for bathrooms and wet areas
Fast & Comfort Heating
High velocity heat distribution whilst preventing dry heat and maintaining comfortable humidity.
Ergonomic Design
Require less wall hanging space. Detachable "H" type fixing bracket (included) for a quick and easy installation and cleaning.


Technical specifications



Model Power (Watts) Height (mm) Width (mm) Depth (mm) Weight (kg)
CN 02 050 MAS IPX4 500 400 430 105 3.4
CN 02 100 MAS IPX4 1000 400 550 105 4.0
CN 02 150 MAS IPX4 1500 400 620 105 4.4
CN 02 200 MAS IPX4 2000 400 770 105 5.4
CN 02 2500 MAS IPX4 2500 400 950 105 6.4


The design and the technical data specified are subject to change without notice.
Prefix model numbers with “NC” if required e.g. NCCN 02 050 MAS IPX4
