eControls

Colour screen Thermostat - CS01

■	4.3inch Colour Touch Screen Operation with Wi-Fi enabled.

■	Electric Heating System or Water Heating System.

■	Adjustable Comfort Mode, Economy Mode, Party Mode, Holiday Mode and Program Mode Control.

■	5+1+1 Days Programmable

■	External and Internal Sensor Select

■	Clock and Date Display

■	Wi-Fi ready

■	Smart phone compatibility*

Touch Screen Thermostat TS01

The TS01 is a smart way of user interfacing.

■	Single 5V supply

■	Full colour 1.8” TFT square display with 2*2 captive slider integration

■	Serial, single wire, TTL or RS485 connection

■	Integrated real time clock & temperature sensor

■	Integrated Bluetooth 4.0 (SMART) compatible wireless interface

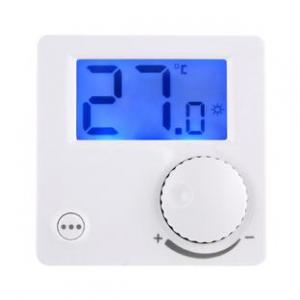

501RF Thermostat

■	Simple to control

■	Large screen display

■	Portable receiver (Desktop)

■	Wireless controlled (RF)

■	16A switching – ideal for electric heating systems

■	Option to connect external temperature sensor (Optional: NTC 100K). Outdoor temperature display status.

■	Power: 220 – 240V AC 50 Hz

■	Protection level: IP20

RBT1 Timer

A Run Back Timer which has a time out period: 15 minutes to 2 hours in 15 minute increments.

■	20 Amp resistive load (including immersion heaters)

■	6 Amp fluorescent lighting

■	3 Amp compact fluorescent lighting

■	3 Amp low energy lighting

■	3 Amp low voltage lighting (switch primary of transformer)

■	Fluorescent lighting (max 6 fittings recommended)

■	Supply voltage: 220-240 Volts AC 50 Hz

Prefect 5003/4

This Touch activated thermostat offers the optimum in convenient, low cost heating control.

■	Rating (at 250v AC) 16a heating load

■	Temperature Range – Set-back level 1-20°C; Boost level

■	15-30°C & Frost protection 1- 20°C (Settable with PRE5900)

■	User adjustment facility (between “set-back” & “comfort” only ~ max / min settings on knob)

■	Temperature accuracy: +/- 0.5°C

■	Timing range: 5mins – 480 mins ( Set back) & time to frost

■	1-72 Hours (Settable with PRE5900)

■	Lvd and Emc Compliant

■	Remote Programming by “IR” handset – PRE5900

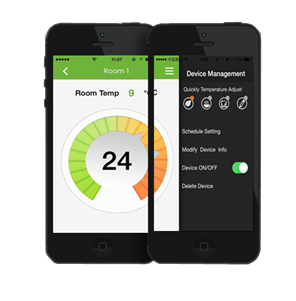

Typical Smartphone Applications
