Gentle
and comforting heat which does not
dry up the air.
New exclusive CyclopeŽ
thermoregulation system accessible
everywhere and to everybody.
Incomparable and homogeneous cuddly heat which does not dry up the air.
Only
EES can cuddle you this way!
Java
range
The
aluminium heating body
contributes to the best heat
exchange, like normal wet
central heating but without any
pipes.
The
thermodynamic fluid, especially
designed for
EES, favours
optimum circulation and quickly
diffuses heat on all the
exchange surface of the
radiator. Its components also
contribute to the
permanent “hot point” effect.
Java
has been designed for the
installer to be quick and easy
to install,
with features such as pre-wired
electrical connections and fast
fit, simple, secure assembly
wall fixing brackets kit.
The
Classic range of electric radiators
is equipped with a lockable
thermostat thanks to the
EES
electromagnetic key delivered with
each radiator.
2
possible heights: 430 and 580 mm.
8
outputs from 500 to 2000 W.
2 options to suit your needs: the Cyclope® radio controlled system and the Classic range
With the Cyclope® radio controlled range you can pilot your overall electric heating installation. You are able to set and program the accurate temperature of the room from the Radio Control onto each radiator. You are also able to calculate the flow of electricity needs. The set temperature on the
EES Cyclope® radiator is accurately shown in half a degree centigrade.
EasyPilot™
Designed as a mobile
phone, as easy to
programme, control and
pilot with an Integrated
help menu.
T.S.C. by EES
Secured transmission and
feedback thanks to the
ZigBee communication
protocol.
EnergyControl™
You can easily check
your electric
consumption for every
radiator, each room or
zone.
OptiPower™
You can optimize your
heating power supply
(75%, 50% or 25%) and
save money from your
electricity contract.
The Classic range is equipped with an electronic thermostat that can work either as a stand alone or can be programmed with a pilot wire timer- programmer.
15
EES radiators can be piloted and individually controlled in 4 different zones with one Cyclope® Users can optimise their thermostat settings to save heating costs and conserve energy, complying with the Energy efficiency requirements in the Building Regulations part L.
Java 900 W
Java 1200 W
Technical specifications
JAVA - LOW PROFILE CONSTRUCTION 430 mm
H430

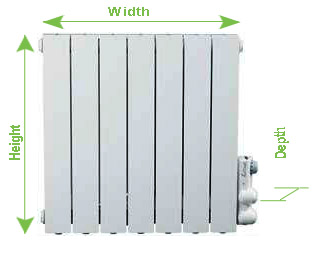

Dimensions (mm)
Java CyclopeŽ radio
Java Classic
Watts (w)
Height
Width
Depth
500
430
460
95
JAV BY2 050045
JAV BCL 050045
1000
430
860
95
JAV BY2 100085
JAV BCL 100085
1500
430
1260
95
JAV BY2 150125
JAV BCL 150125
JAVA - STANDARD HEIGHT 580 mm
H580
Dimensions (mm)
Java CyclopeŽ radio
Java Classic
Watts (w)
Height
Width
Depth
750
580
540
80
JAV CY2 075053
JAV CL 075053
900
580
620
80
JAV CY2 090061
JAV CL 090061
1200
580
780
80
JAV CY2 120077
JAV CL 120077
1500
580
940
80
JAV CY2 150093
JAV CL 150093
1800
580
1020
80
JAV CY2 180101
JAV CL 180101
2000
580
1180
80
JAV CY2 200117
JAV CL 200117
Standards
and Labels
EES radiators are individually
tested at each stage of the
production process.
The standards and labels awarded
guarantee your safety:
